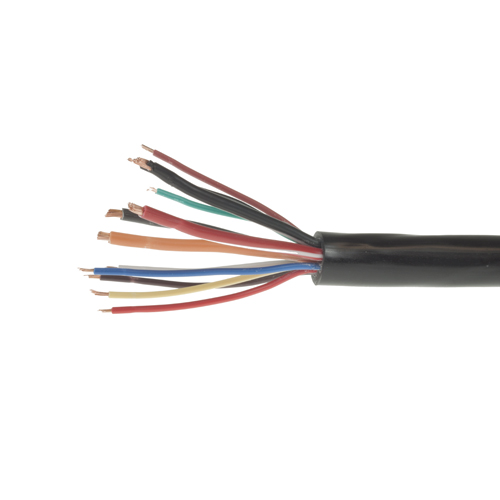

MP305 50M Roll 7×0.65mm²+1×1.5mm²+4×2.5mm² 12 Core Black Cable

  • 12 core black trailer cable
  • Ideal for 13 pin towing electrics
  • 50m cable reel
  • Spec. 7×0.65mm² (yellow, blue, green, brown, red, black, brown and dark red) + 1×1.5mm² (white) + 4×2.5mm² (orange, black & white, red & white and grey)
  • PVC insulated, gives good resistance to abrasion or cut through

Guidance

The figures provided below are for guidance only and based on a 5-metre return circuit with a less than 1.0V voltage drop. The current rating of cable is based on the acceptable loss of voltage for the length of cable used. Lower voltage drops can be achieved by using cables with a greater c.s.a. Cable lengths, operating conditions, temperatures and applications must be considered. Voltage drop for return circuits must be calculated and added to the value for the supply conductor. For more detailed information refer to BS 7671:2018 or BS 6862 Part 1.
