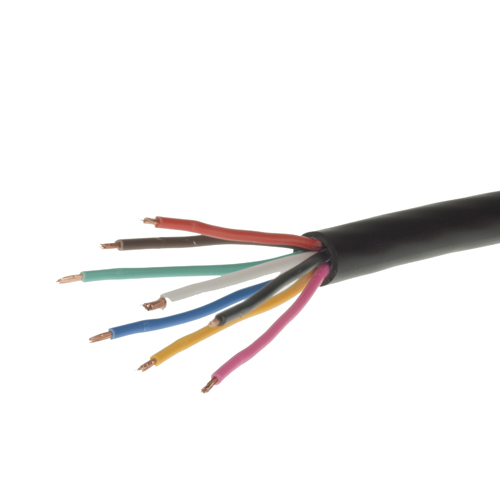

MP3195 100M Roll 7×0.50mm²+1x1mm² 8 Core Black Cable

  • 8 core black trailer cable
  • Ideal for 8-13 pin trailer applications with reverse lights where auxiliary battery charging is not required
  • 100m cable reel
  • Spec. 7×0.50mm2 (yellow, blue, green, brown, red, black and pink) + 1×1.0mm2 (white)
  • PVC insulated, gives good resistance to abrasion or cut through
  • Please note the single core measurement is white

Guidance

The figures provided below are for guidance only and based on a 5-metre return circuit with a less than 1.0V voltage drop. The current rating of cable is based on the acceptable loss of voltage for the length of cable used. Lower voltage drops can be achieved by using cables with a greater c.s.a. Cable lengths, operating conditions, temperatures and applications must be considered. Voltage drop for return circuits must be calculated and added to the value for the supply conductor. For more detailed information refer to BS 7671:2018 or BS 6862 Part 1.

SKU: MP3195 Category: Tags: ,
