MP725 75A 12/24V Maypole Start Charger
MP725 75A 12/24V Maypole Start Charger. Suitable for applications including cars, commercial vehicles and tractors with 12/24V lead acid and AGM batteries
MP725 75A 12/24V Maypole Start Charger suitable for applications including cars, commercial vehicles, vans and tractors with 12V or 24V lead acid and AGM batteries
- TUV/GS approved

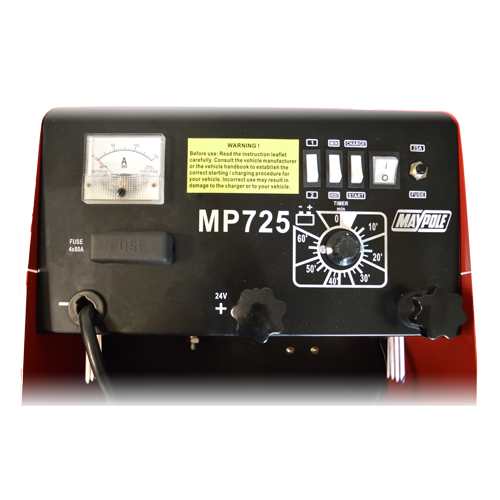

- Ammeter to show charging current
- 2m leads with insulated crocodile clips
- Robust steel case
- Built in safety features – reverse polarity and overload protection
- Easy to manoeuvre with wheels and moving handle
- Portable and robust design
- Full colour display box
- Boost charge timer
- Rated input current
- For indoor use only
- Mains supply – 230v/50Hz
- Max power input – 6.5kW
- Output voltage – 12/24v
- EN Rated charging current (12/24V) – 25/30A
- Max charging current peak – 75A
- Rated starting current (EN60335) – 300A
- Max starting current peak – 450A
- Charging positions – 4
- Battery capacities – 120/750Ah
- 4 x 80 amp fuses
- IP20
- Dimensions – 670x385x300mm
- Weight – 28kg
Note: This device is supplied without a plug. The electrical supply required is in excess of 13A; an industrial socket in accordance with IEC60309 (not supplied) is recommended.
Spares for MP725 75A 12/24V Maypole Start Charger
MP7081 – 80A fuse
