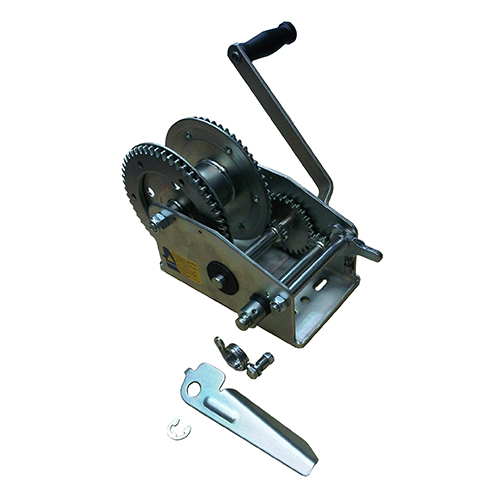

MP1432 1454Kg / 3200Lb Professional Hand Winch

MP1432 1454Kg / 3200Lb Professional Hand Winch. Heavy-duty construction for pulling heavy loads, a great alternative to Dutton Lainson and Fulton

MP1432 1454Kg / 3200Lb Professional Hand Winch

  • Heavy-duty construction for pulling heavy loads, a great alternative to Dutton-Lainson and Fulton
  • 2 speeds geared for optimal winching speed versus effort (mechanical advantage)
  • Solid gear construction
  • Two-way ratchet with precise gear tooth engagement
  • Hand brake supplied as standard on all models
  • Universal drum will accept a cable or strap (not supplied)
  • 500hr red-rust resistant plating for marine use
  • Accessories and spares available
  • CE & UKCA approved
  • Max rolling load 1950Kg
  • Brake Supplied

Specification

  • CE Rated Working Capacity – 750kg
  • Manufacturer’s Recommended Max. Capacity – 1454kg / 3200lb
  • Speeds – 2
  • Gear Ratio – 5.1:1 / 12.1:1
  • Min / Max Mechanical Advantage – 86:1 / 203:1
  • Operating Force Required – 8.72kg / 3.69kg
  • Drive Gear – Dual
  • Finish – Salt Spray Test Red Rust Resistance – 500 hour

Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Spares
MP14321 – Handle assembly
MP14323 – Spare fixing kit for winch handle
MP14325 – Spare pawl spring kit

Download Instructions

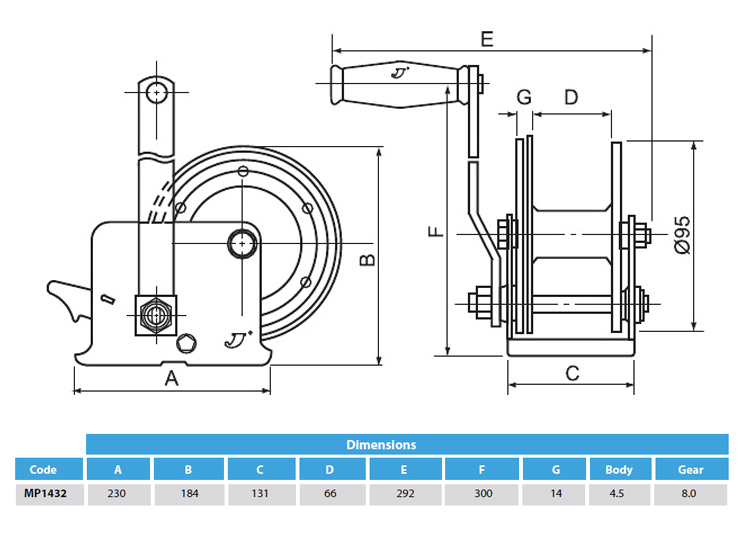

Download Drawings
