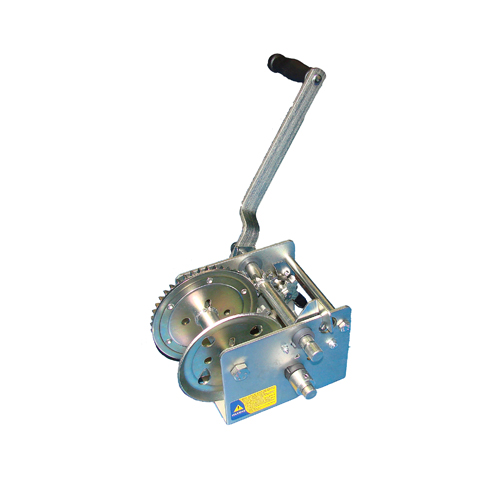

MP1425 1100Kg / 2500Lb Professional Hand Winch
MP1425 1100Kg / 2500Lb Professional Hand Winch. Heavy-duty construction for pulling heavy loads, a great alternative to Dutton Lainson and Fulton
MP1425 1100Kg / 2500Lb Professional Hand Winch
- Heavy-duty construction for pulling heavy loads, a great alternative to Dutton Lainson and Fulton
- Neutral free-wheel gear position allows quick line pay out without handle movement
- 2 speeds geared for optimal winching speed versus effort (mechanical advantage)
- Solid gear construction
- Two-way ratchet with precise gear tooth engagement
- Hand brake supplied as standard on all models
- Universal drum will accept a cable or strap (not supplied)
- 500hr red-rust resistant plating for marine use
- Accessories and spares available
- CE & UKCA approved
- Max rolling load 1625Kg
- Brake Supplied

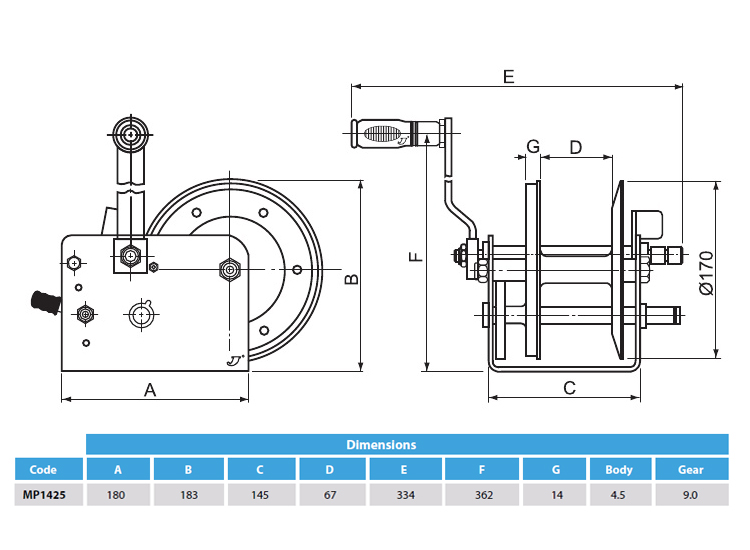

Specification:
- CE Rated Working Capacity – 625kg
- Manufacturer’s Recommended Max. Capacity – 1100kg / 2500lb
- Speeds – 2
- Gear Ratio – 5.5:1 / 14.3:1
- Min / Max Mechanical Advantage – 93:1 / 242:1
- Operating Force Required – 6.75kg / 2.58kg
- Drive Gear – Single
- Finish – Salt Spray Test Red Rust Resistance – 500 hour
- Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg
Spares:
- MP14201 – Handle assembly
- MP14202 – Pawl spring
- MP14205 – Pawl spring kit
