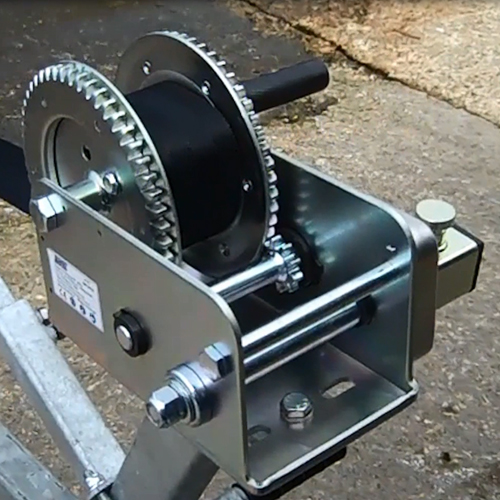

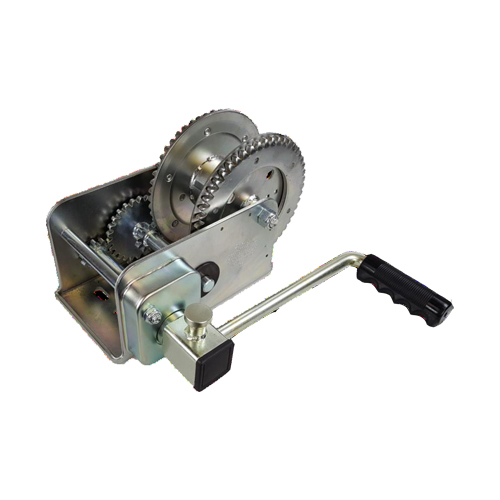

MP14425 Professional Safety Hand Winch 1100KG/2500LB

• Heavy duty construction for pulling and lifting heavy loads
• Integral clutch brake automatically holds load in place
• Handle will never spin freely and cause injury
• Drum capacity 25m x 6mm cable
• 500 hour red-rust resistant plating which is ideal for marine use

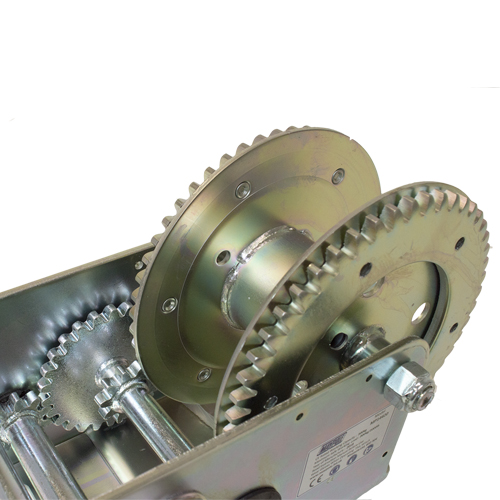

• With removable quick-release handle and solid gears

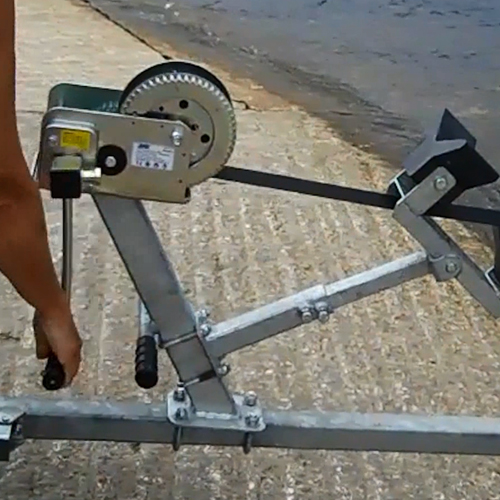

• Ideal for commercial and private use, boat trailers, recovery vehicles and car transporting
• CE & UKCA Approved
• Accessories available
  • MP1450 steel winch cable

Specification

• CE rated working capacity: 625Kg
• Max rolling load: 1631Kg
• Manufacturer’s recommended max capacity: 1100Kg/2500LB
• Speeds: 1
• Gear ratio: 13.3:1
• Mechanical advantage: 104.8:1
• Operating force required: 9.54Kg
• Drive gear: Dual

Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Instructional Video

Spares

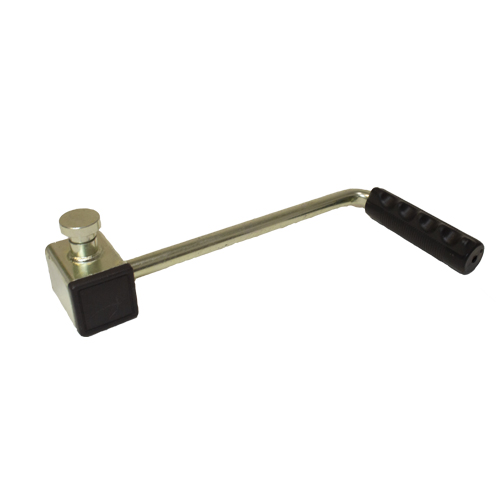

MP1441 – Spare handle
