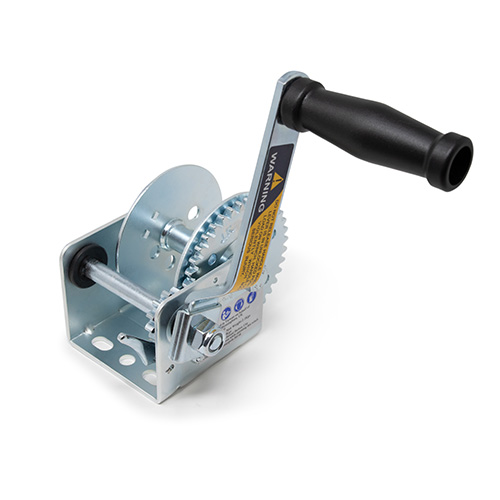

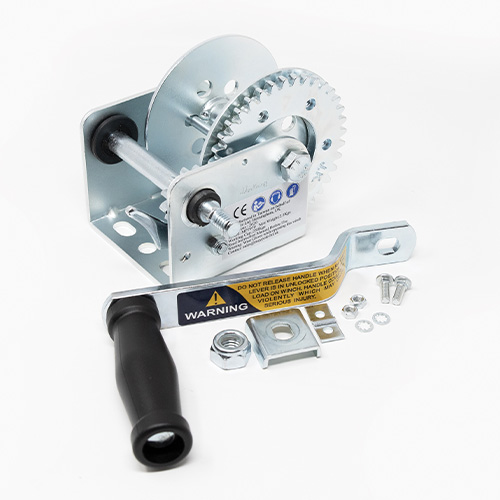

MP7970 Standard Hand Winch 385Kg / 850LB

MP7970 Standard Hand Winch 385Kg / 850LB. Standard hand winch which is robust steel construction for durability. CE approved

MP7970 Standard Hand Winch 385Kg / 850LB

  • Standard hand winch which is robust steel construction for durability
  • All models feature a safety ratchet
  • Bright zinc plated
  • With solid gears
  • Model 850
  • CE & UKCA approved
  • Accessories and spares available
  • Max rolling load 650kg

Specification

  • CE Rated Working Capacity 250kg
  • Manufacturer’s Recommended Max. Capacity 385kg / 850LB
  • Speeds Single
  • Gear Ratio 3.1:1
  • Min / Max Mechanical Advantage 42
  • Operating Force Required 5.95kg
  • Drive Gear Single
  • Brake Supplied No
  • Strap Included No
  • Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Download Instructions

Download Approvals

Spares

  • Handle – MP79711
  • Pawl spring – MP79712
