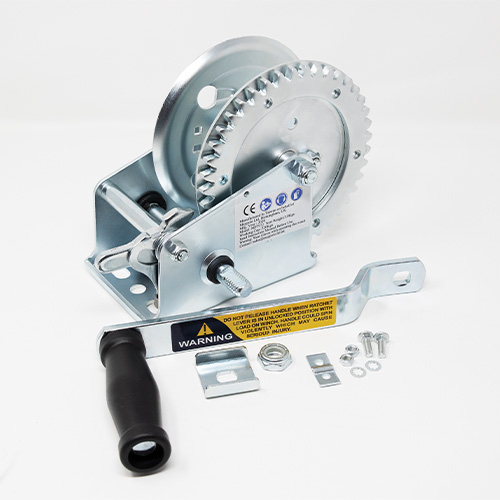

MP7972 Standard Hand Winch 545Kg / 1200LB
MP7972 Standard Hand Winch 545Kg / 1200LB
MP7972 Standard Hand Winch 545Kg / 1200LB
- Standard hand winch robust steel construction for durability
- Features a safety ratchet
- With solid gears
- CE & UKCA approved
- Accessories and spares available
- Bright zinc plated
- Max rolling load 832Kg
Specification
- CE Rated Working Capacity
- Manufacturer’s Recommended Max. Capacity 320kg
- Speeds 545kg / 1200LB
- Gear Ratio Single
- Min / Max Mechanical Advantage 4.3:1
- Operating Force Required 704.57kg
- Drive Gear Single
- Brake Supplied No
- Strap Included No
- Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg
Spares
MP79721 – Handle
MP79722 – Pawl Spring
