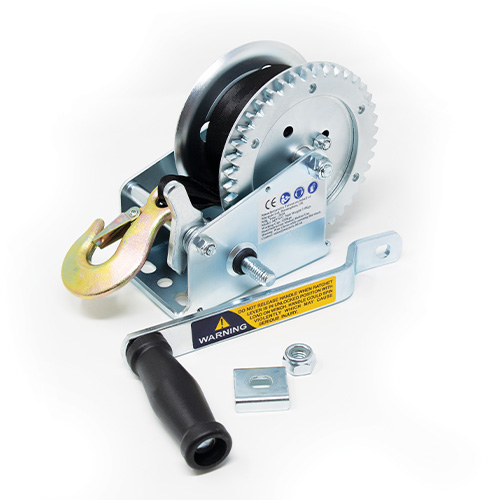

MP7973 Standard Hand Winch 545Kg / 1200LB

MP7973 Standard Hand Winch 545Kg / 1200LB

MP7973 Standard Hand Winch 545Kg / 1200LB

  • Standard hand winch robust steel construction for durability
  • Fully zinc plated
  • CE & UKCA approved
  • With solid gears
  • Accessories and spares available
  • Features a safety ratchet
  • Max rolling load 832Kg

Specification

  • CE Rated Working Capacity 320kg
  • Manufacturer’s Recommended Max. Capacity 545kg / 1200LB
  • Speeds Single
  • Gear Ratio 4.3:1
  • Min / Max Mechanical Advantage 70
  • Operating Force Required 4.57kg
  • Drive Gear Single
  • Brake Supplied No
  • Strap Included Yes
  • Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Download Instructions

Download Approvals

Spares
MP79721 – Handle
MP79722 – Pawl Spring

Compare
SKU: MP7973 Category: Tags: , ,
