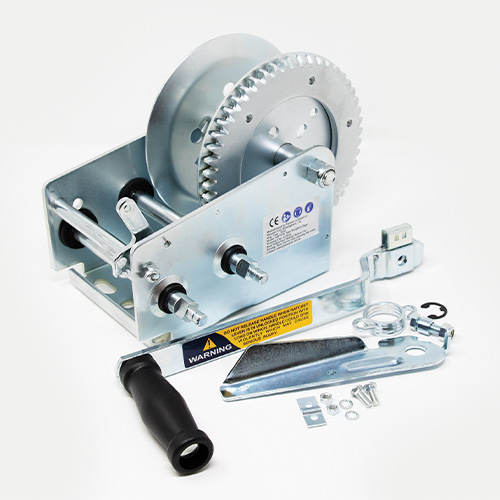

MP7976 Heavy Duty Hand Winch With Hand Brake 1100Kg / 2500LB

  • Robust steel construction for durability
  • Bright zinc plated
  • CE & UKCA approved

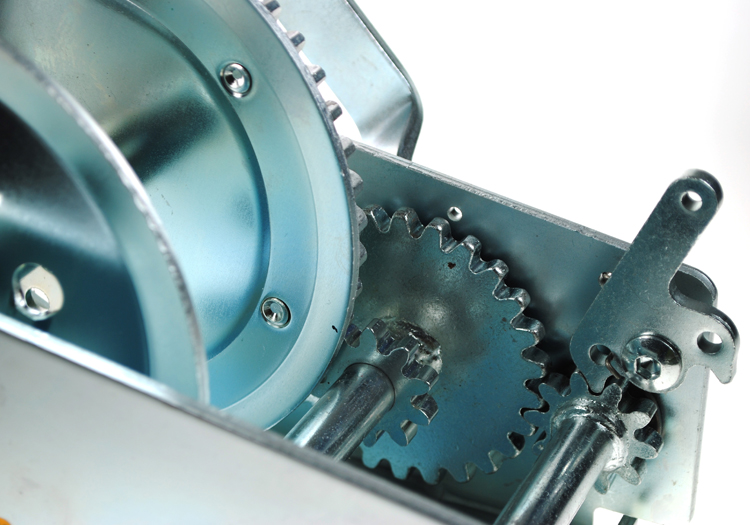

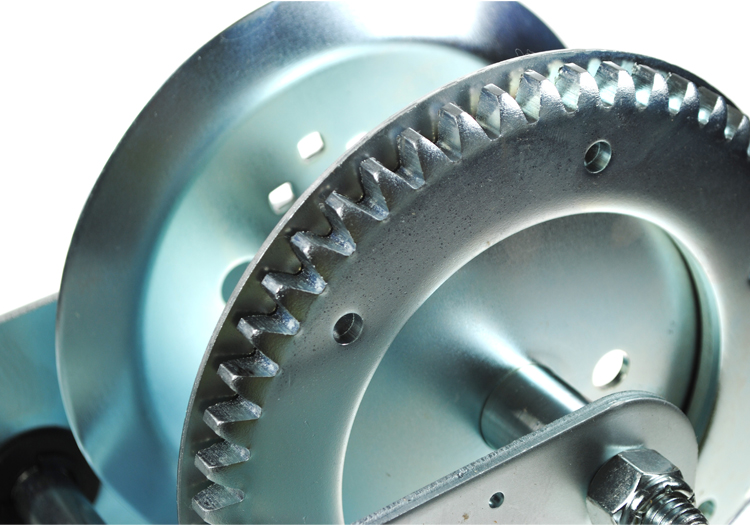

  • With solid gears
  • Features a safety ratchet
  • Accessories and spares available
  • Supplied with a snap-on handle

Specification:

  • CE Rated Working Capacity: 625kg
  • Max rolling load: 1625Kg
  • Manufacturer’s Recommended Max. Capacity: 1100kg / 2500LB
  • Speeds: 2
  • Gear Ratio: 5.5:1 / 14.3:1
  • Min / Max Mechanical Advantage: 92:1 / 240:1
  • Operating Force Required: 6.79kg / 2.60kg
  • Drive Gear: Single
  • Brake Supplied: Yes
  • Strap Included: No

Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Spares:

  • MP79761 – Handle
  • MP79762 – Pawl Spring
SKU: MP7976 Category: Tags: ,
