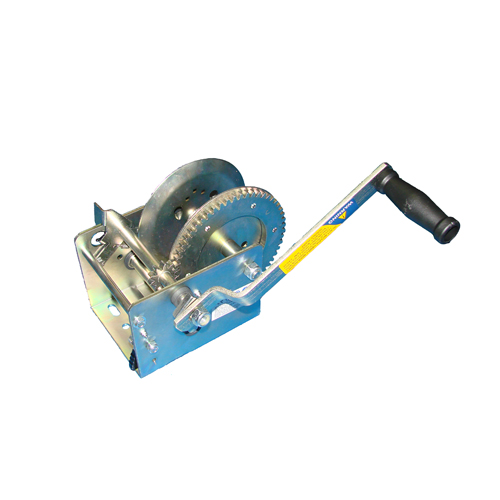

MP1420 900Kg/2000Lb Professional Hand Winch

• Heavy-duty construction for pulling heavy loads
• Great alternative to Dutton Lainson and Fulton winches
• Neutral free-wheel gear position allows quick line pay out without handle movement
• 2 speeds geared for optimal winching speed versus effort (mechanical advantage)
• Solid gear construction
• Two-way ratchet with precise gear tooth engagement
• Hand brake supplied as standard on all models
• Universal drum will accept a cable or strap (not supplied)
• 500hr red-rust resistant plating for marine use
• Accessories and spares available
• CE & UKCA approved
• Max rolling load 1300kg
• Brake Supplied

Specification:

• CE Rated Working Capacity: 500kg
• Max Rolling Load: 1300kg
• Manufacturer’s Recommended Max. Capacity: 900kg / 2000lb
• Speeds: 2
• Gear Ratio: 4.3:1 / 11.2:1
• Min / Max Mechanical Advantage: 73:1 / 190:1
• Operating Force Required: 6.84kg / 2.63kg
• Drive Gear: Single
• Finish – Salt Spray Test Red Rust Resistance: 500 hour

Max. rolling load on a 30% gradient and a good surface. Example line pull (900kg) x 2.6 = 2340Kg

Spares
MP14201 – Handle assembly
MP14202 – Pawl spring
MP14205 – Pawl spring kit
